Overview

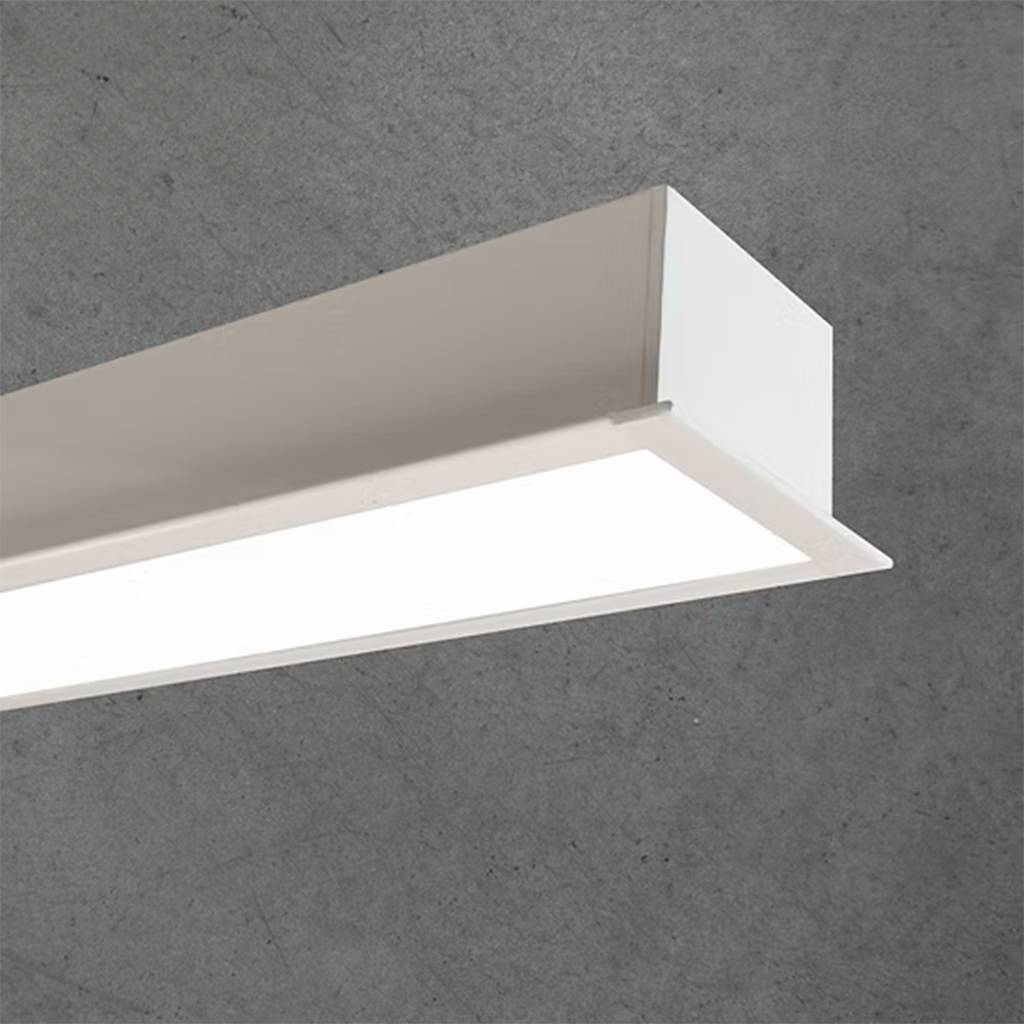

Designed and Manufactured in South Australia the VL36 LED Recessed Mounted system (36mm wide x 30mm high) offers a high performance solution in any length with individual lengths of up to 4m. Designed for use in interior applications, the standard system comprises Kopa solid PCB LED boards in both 14 and 28 watts per metre, in 3K and 4K, matched with a Ledvision PMMA high impact diffuser.

Finished standard in Black or White, custom colours are available on request. The VL36 operates on a 24v DC constant voltage remote supply, which can be dimmed if required. Custom configurations including 2.7K, Colour Tuneable, RGB, RGBW are also available.

Specs

Lumens
1124-2204lm
Wattage
14-28W
Size
Medium
Colour Temperature
3000
4000
RGB
RGBW
Optic
  • Wide
Beam Angle
110
Finishes
White
Black
Custom
Dimensions
46mm W x 30mm H
Cutout
41mm W
Warranty
5 Years
