Exodus™ Dynamic

Overview

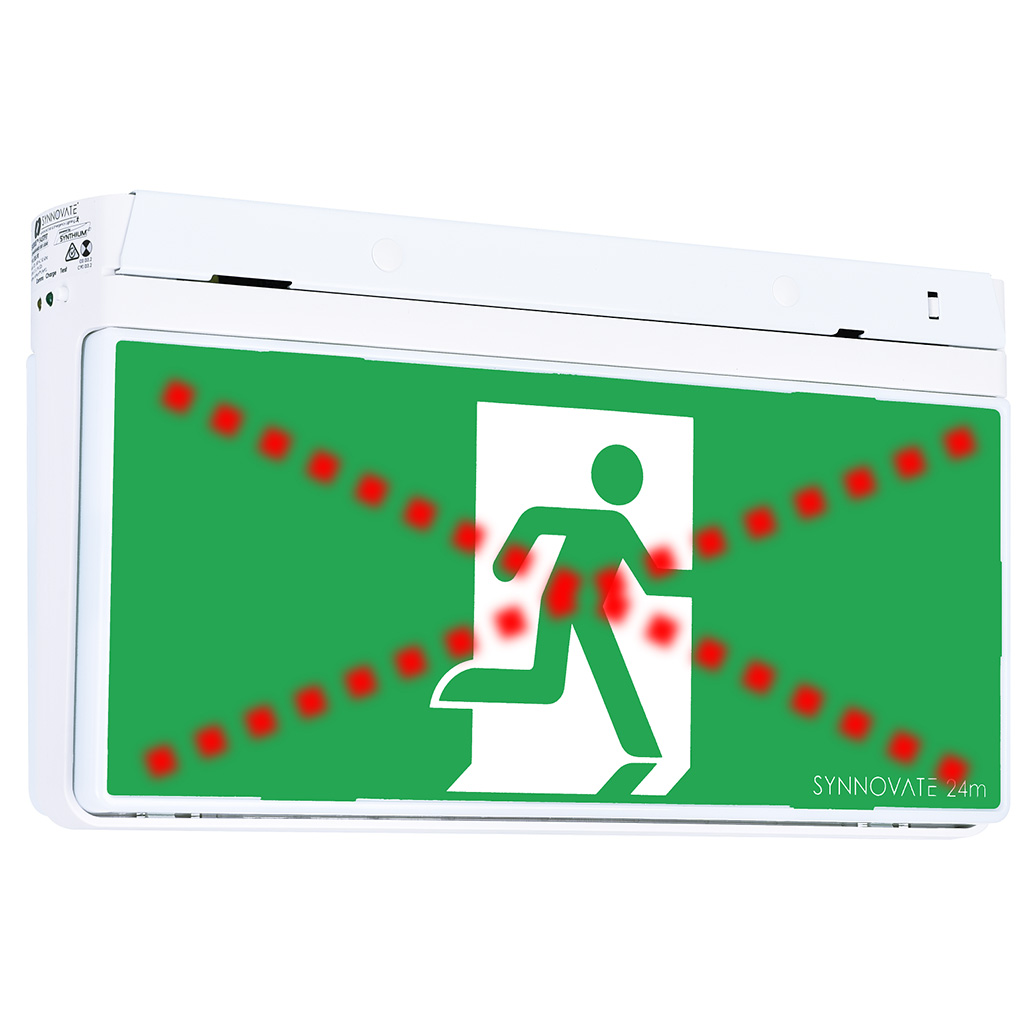

Dynamic Exit Lights provide positive enforcement (flashing green LEDs) to indicate a safe exit path or negative enforcement (flashing red LEDs) to indicate that the path should be avoided due to a hazard.

It is triggered from a fire panel and provides instant visual indication on whether the exit path is safe to allow for efficient and safe egress out of large buildings such as offices, shopping centers, hospitals, high rise apartment buildings and commercial buildings.

Features:

Advanced Synthium™ battery technology

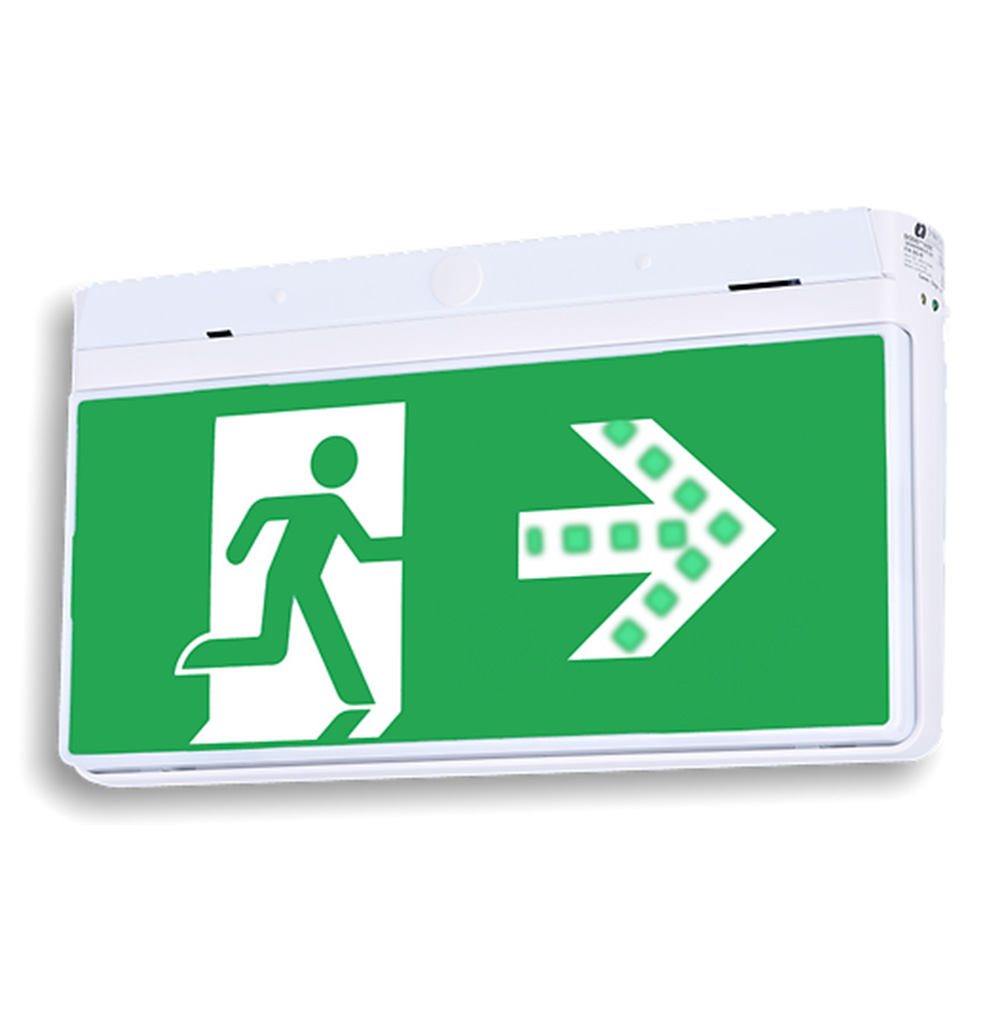

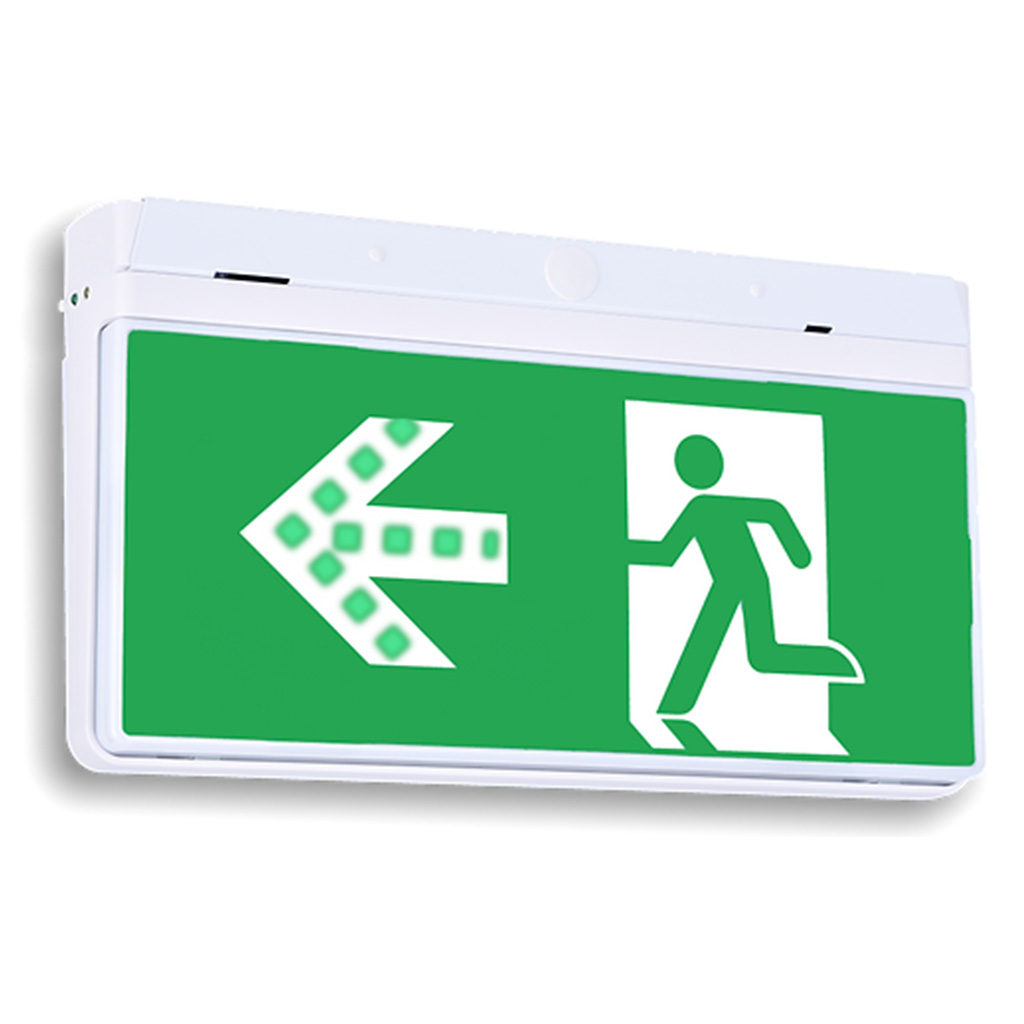

Choice of Straight Ahead (No Arrow), Arrow Left, or Arrow Right
24VDC input
24m viewing distance
Emergency classification: C0 D4 C90 D8
Wall or ceiling surface mounted
Slide and connect installation
Single or double sided
Low energy consumption
Long life electronics
Maintained operation
5 year warranty
Designed and tested in accordance to AS/NZS 2293.1

Specs

Wattage

IP Rating

IP20

Finishes

White

Dimensions

380mm L x 75mm W x 215mm H

Warranty

5 Years

Product Lifetime

100,000hrs

Operating Mode

Maintained
Dynamic Pictogram

Viewing Distance

24m

NATA Classification

C0-D4 / C90-D8

Mounting

Surface - Wall / Ceiling (Single or Double Sided)

Diffuser

No Arrow / Arrow Right / Arrow Left

Key Downloads

Product Website Product Datasheet
