Overview

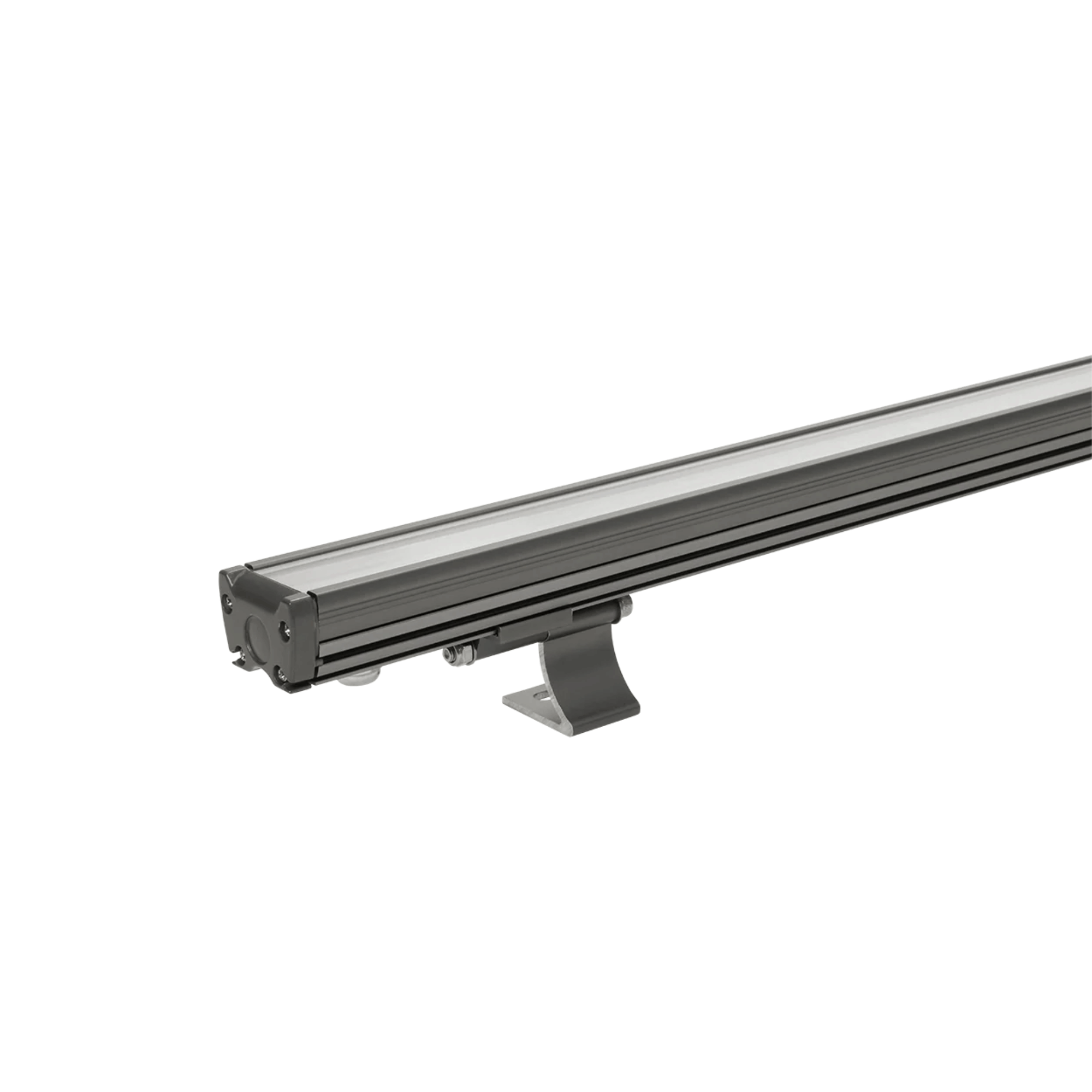

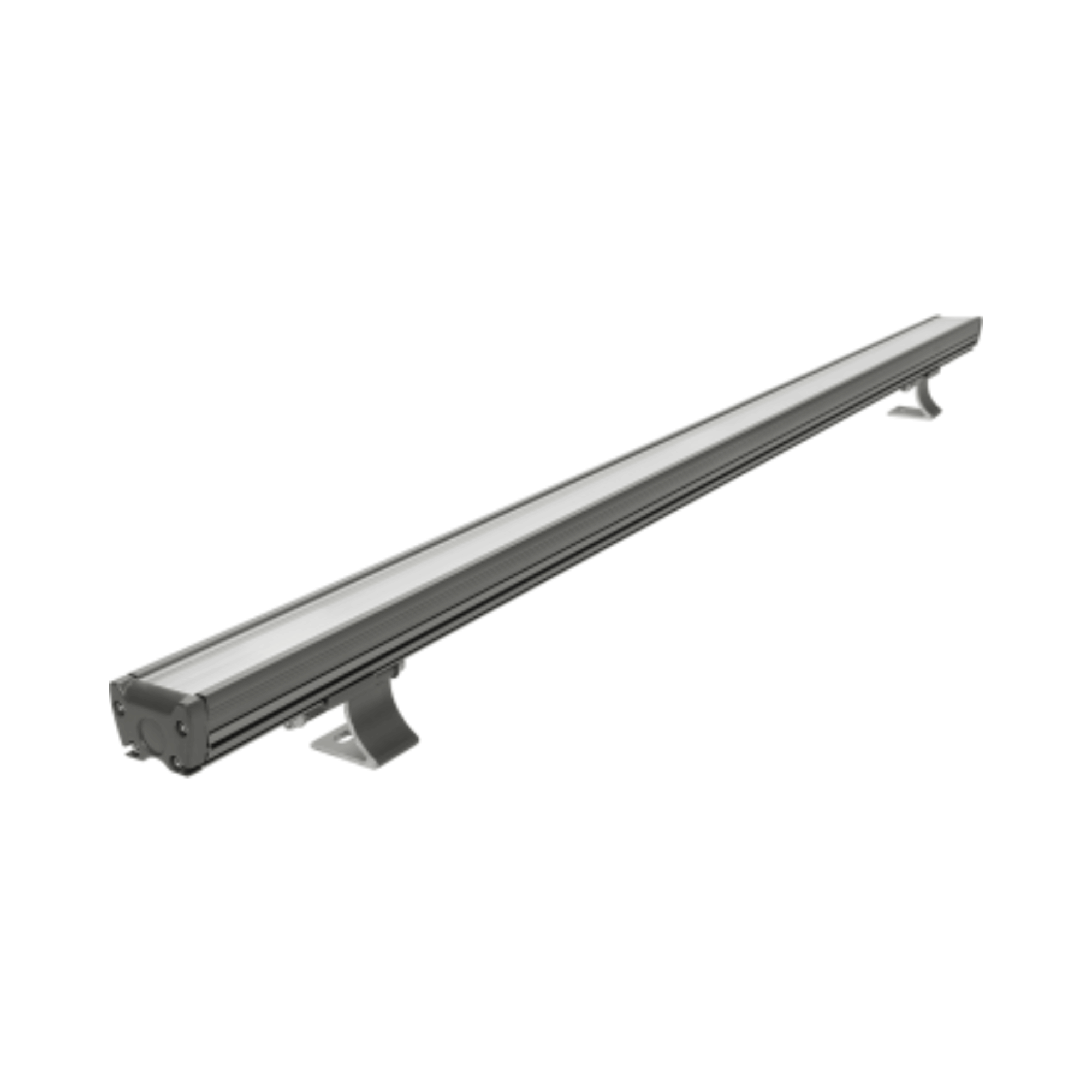

Blade is a compact, medium-output exterior linear system designed for the illumination of facades. The extremely versatile system has an adjustable mounting bracket enabling a 180° range of motion and can be configured with an astounding assortment of beam options, ranging from clear, opal and frost diffusers to an array of linear and individual optics enabling ultra-narrow to wide beams and multiple elliptical outputs. Furthermore, Blade’s compact 44mm wide body can fit any of Digilin’s LED colour options, including fixed whites, tuneable white, RGB and RGBW and Sunlike growlights.

The system’s incredibly broad range of configurable options allows it to create a variety of exterior lighting effects, giving specifiers a greater ability to achieve their design goals rather than compromising on outcomes.

Blade is manufactured by Digilin in Australia.

Technical Details

Product Type
  • Linear
  • Outdoor
Optics
  • Opal Diffuser
Wattage
  • 7-25W
Lumens
  • 600-3500lm
Colour Temperature
  • 2700K
  • 3000K
  • 4000K
  • RGB
  • RGBW
  • Tuneable White 2700K-5000K
Colour Rendering Index
  • 90+
Beam Angle
  • 40°x90°°
  • 70°x100°°
  • 100°x115°°
  • Asymmetric Wall Wash°
Product Lifetime
  • L80 (10k) >60,000hrs
Finishes
  • Custom
  • Silver
Control Gear
  • DALI
  • Non Dim
IP Rating
  • IP66
IK Rating
  • IK08
Warranty
  • 5 Years
